Clever – Wall Bed Shin

Wall bed SHIN by Italian brand Clever.

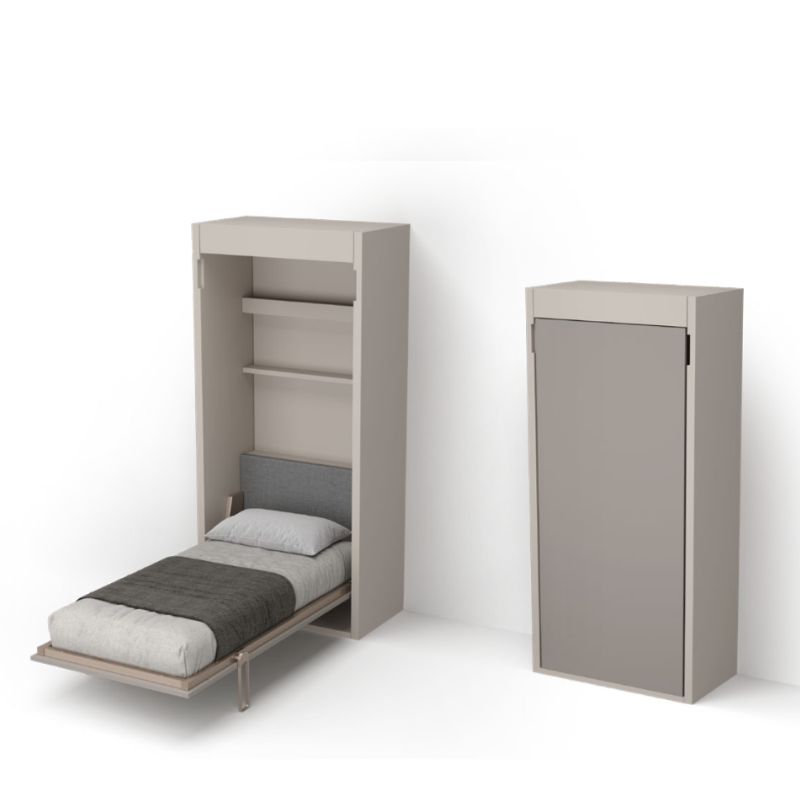

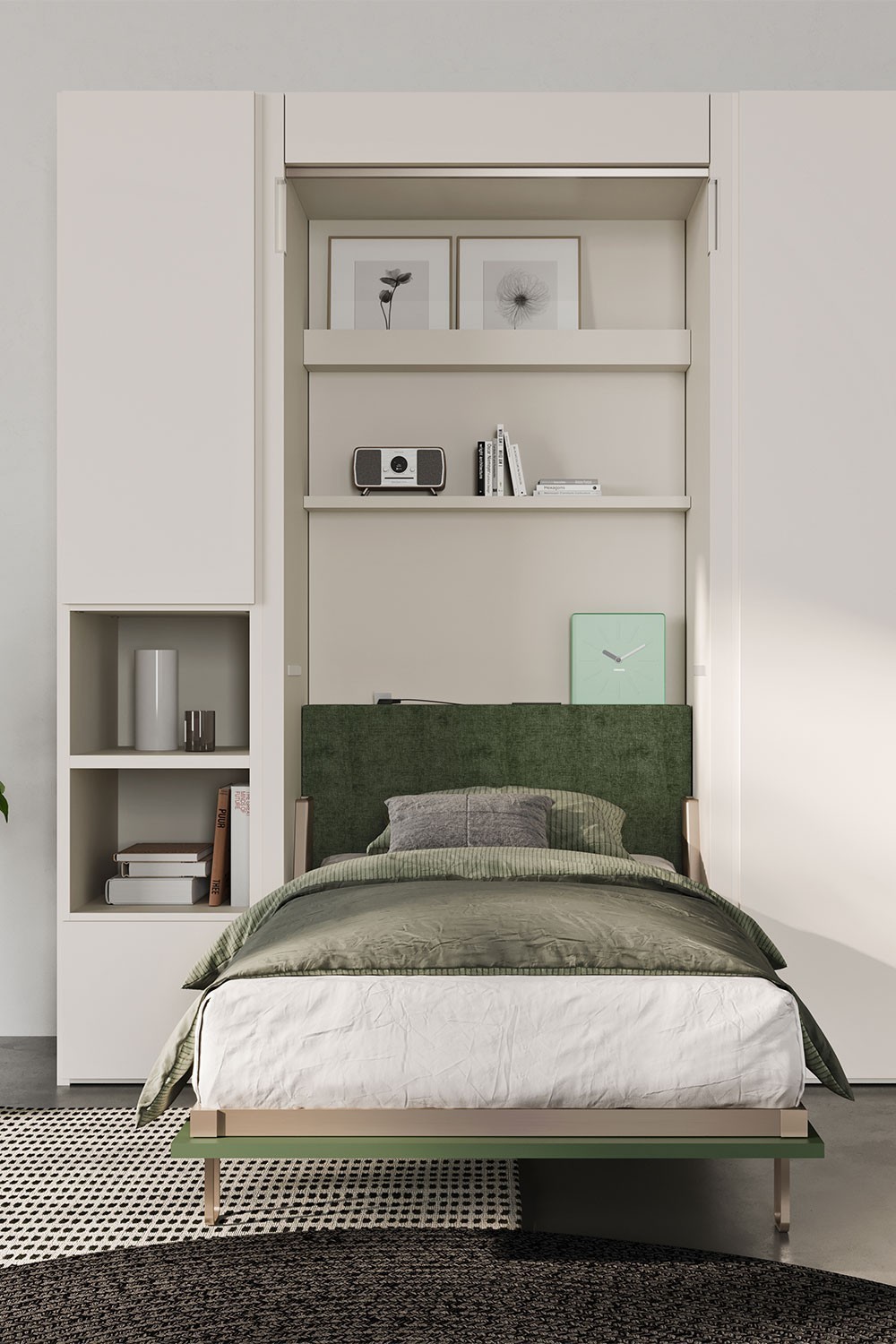

Shin is a murphy wall bed with vertical pull down mechanism or motorized system. Available as a single, large single, French double or king size bed.

MODEL 1:

• 90 x 200 x 32,8 cm
• Melamine base, Melamine top, 3 cm

MODEL 2:

• 120 x 200 x 45,6 cm
• Cat.A fabric
• Melamine base, Lacquered top, 3 cm

Models and Dimensions

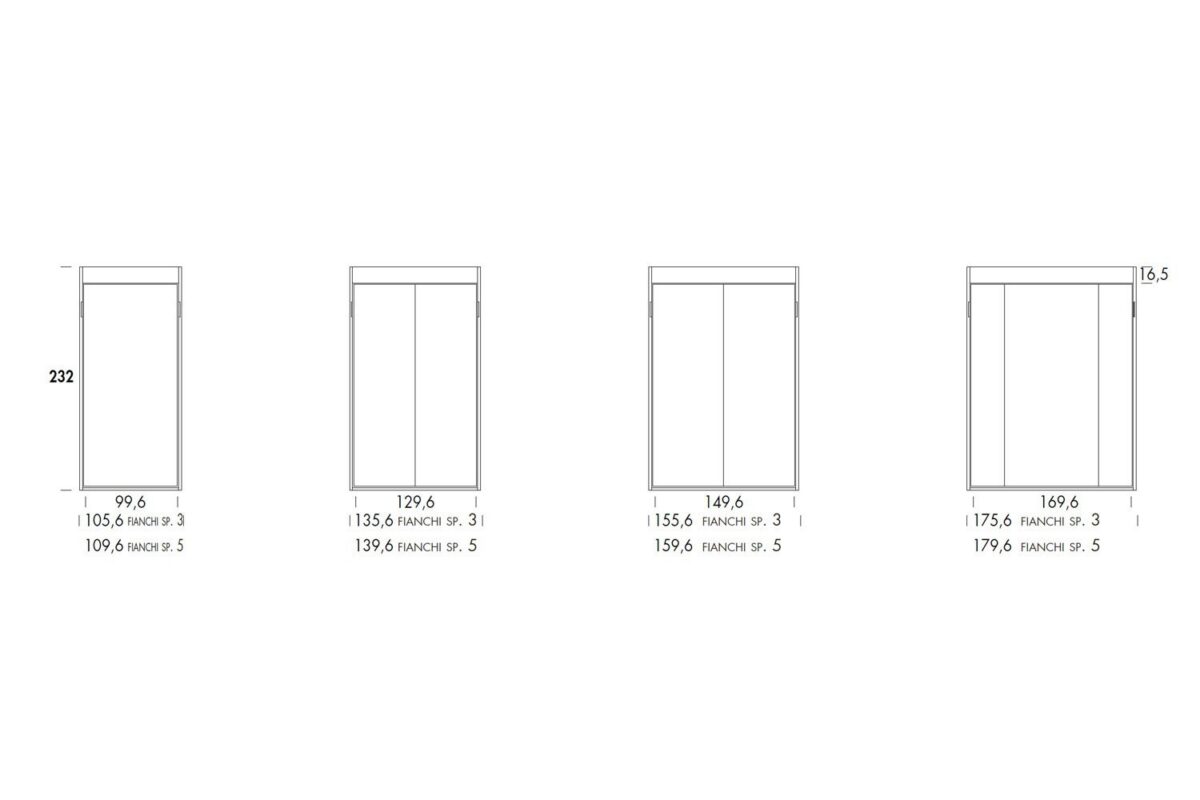

Shin is available for mattresses 90×200, 120×200, 140×200 or 160×200 cm. It comes in a range of models:

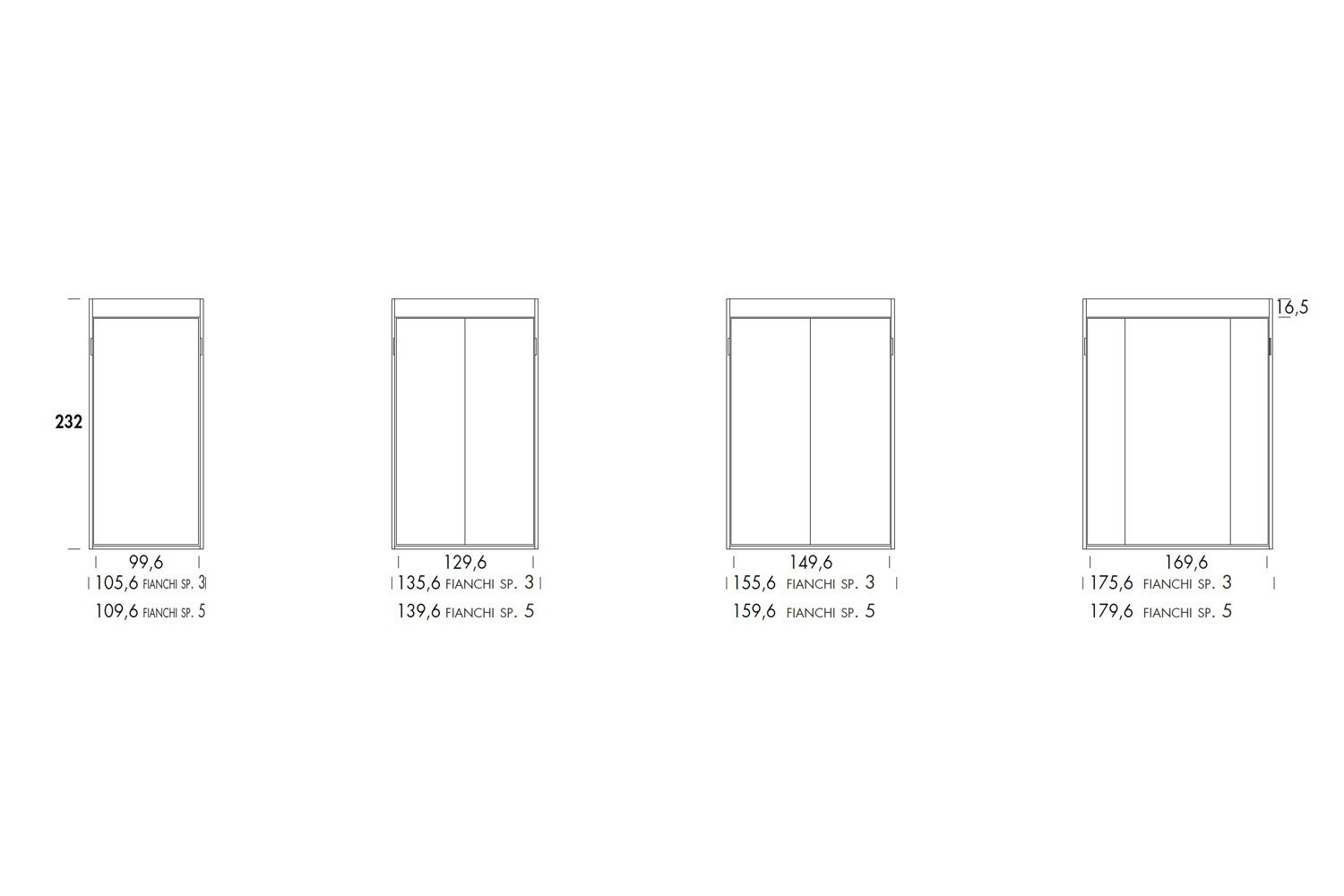

– Shin single bed: w.105,6 / 109,6 d.32,8 / 45,6 / 58,4 h.232 cm
– Shin small double bed: w.135,6 / 139,6 d.32,8 / 45,6 / 58,4 h.232 cm
– Shin French double bed: w.155,6 / 159,6 d.32,8 / 45,6 / 58,4 h.232 cm
– Shin double bed: w.175,6 / 179,6 d.32,8 / 45,6 / 58,4 h.232 cm

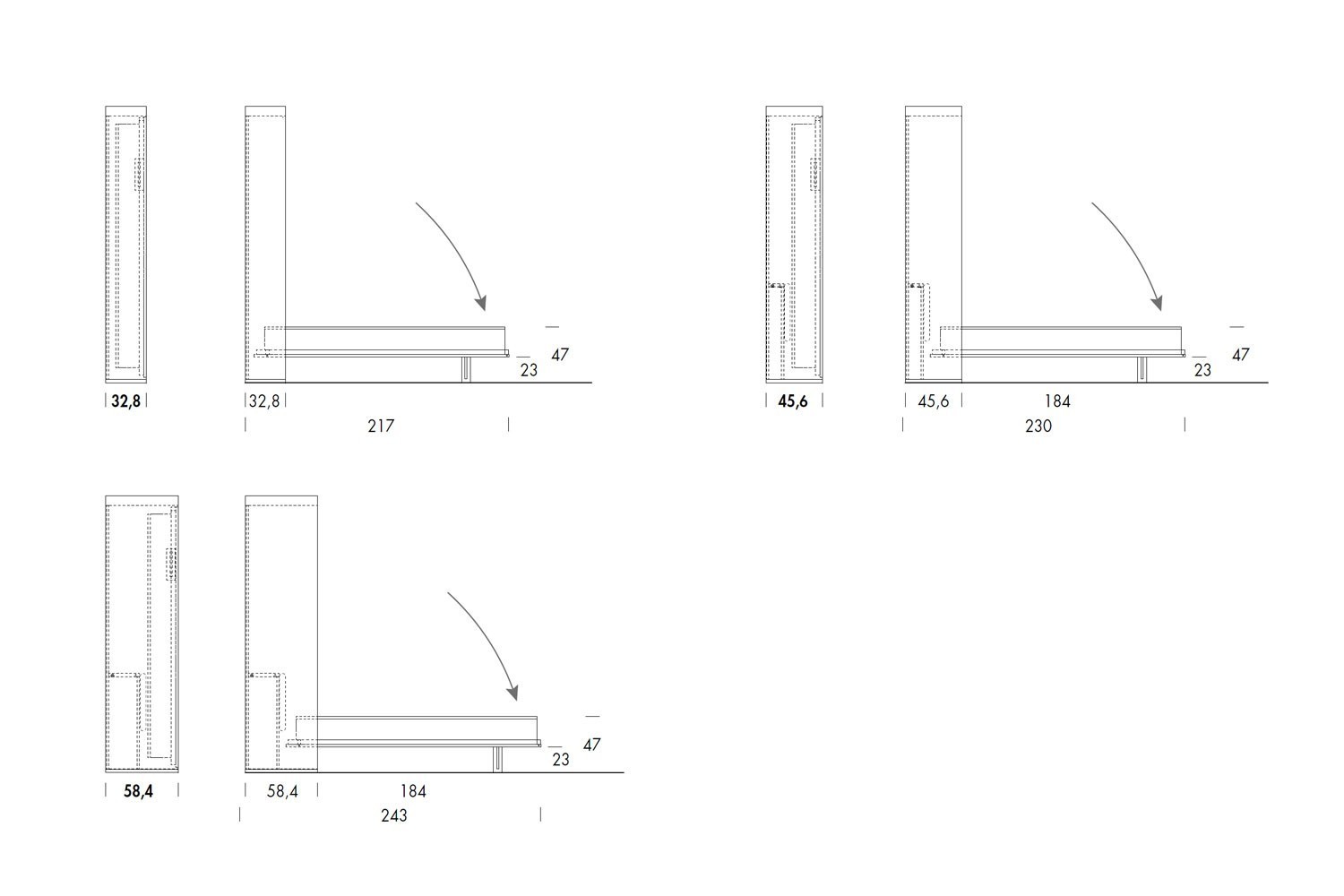

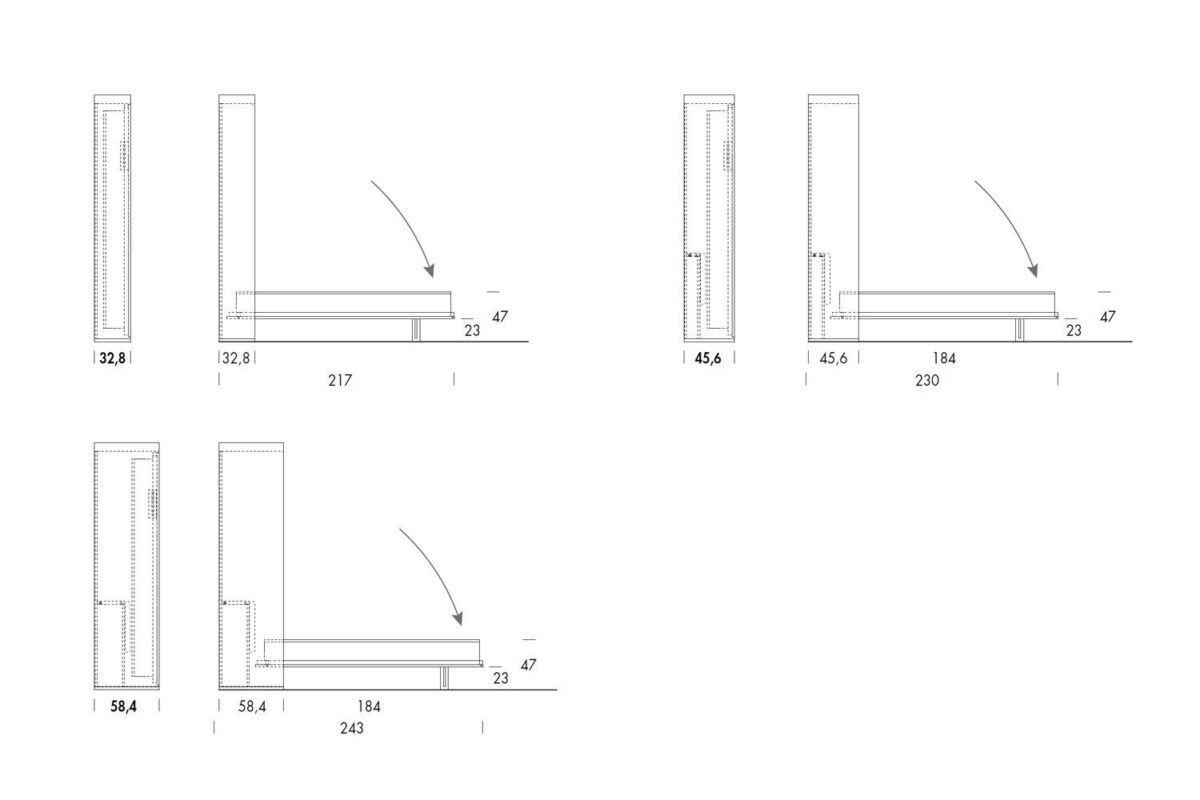

Depth with open bed: 217 / 230 / 243 cm

PLEASE NOTE
Set images are examples of possible furniture solutions. The dimensions refer to wall beds with full-height frame partitions and h.16,5 cm front top panel.

Structure
Side panel: with frame partitions, full-height, 3 or 5 cm thick.
Top panel: 5 cm thick.

Bed base and Mattresses
Bed base: safety system that prevents the murphy bed from accidentally opening, Inox Blonde finish. Max. bed load: 150 kg (single, large single, French double beds) / 200 kg (double bed).
Mattress: 90×200 / 120×200 / 140×200 / 160×200 h.18/20 cm (max thickness). Max. weight: 18 kg (single bed) / 23 kg (large single bed) / 29 kg (French double) / 34 kg (double). Model selections
– Premium: pocket sprung mattress with 11×30 cm springs (single bed) Ø 0,2 cm, Box system with 700 individual pocket springs (double bed) and 7-zoned support system. Internal felt 700 g/sq m, 2 cm D 25 polyurethane foam per side. Winter side with 1 cm memory foam WE 45 density, summer side with 1 cm Watercel 30 E density. Edge supports 25 E density. Amicor removable hypoallergenic cover.
– Elite: pocket sprung mattress with 11×30 cm springs (single bed) Ø 0,2 cm, Box system with 700 individual pocket springs (double bed) and 7-zoned support system. Internal felt 700 g/sq m. Winter side with 1 cm Watercel 30 E density. Edge supports 25 E density. Ecotton hypoallergenic and dust mite-proof padding, Amicor removable hypoallergenic cover, Cotton Plus non-removable cover with aerators.

Equipment

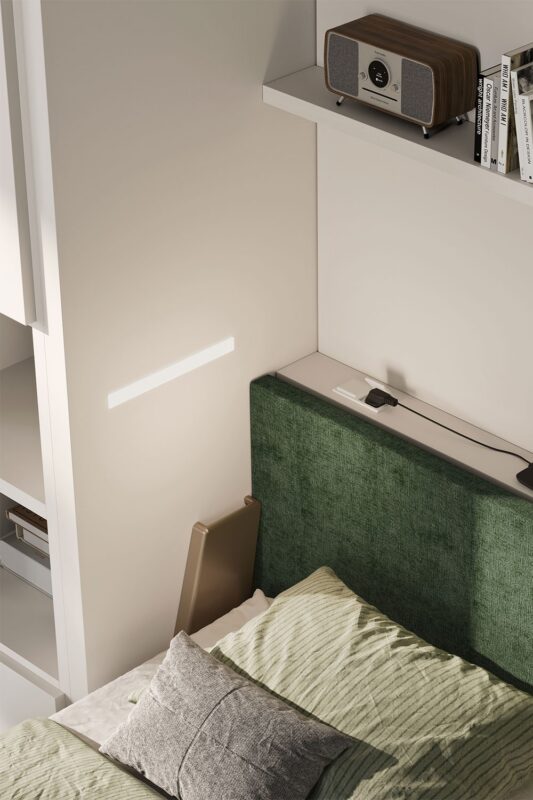

Headboard: for d.45,6 and 58,4 cm wall beds, upholstered cushion fixed on the back panel, cat. A or B fabrics, non-removable cover. Available for 90, 120, 140 and 160 cm bed bases.

Optionals

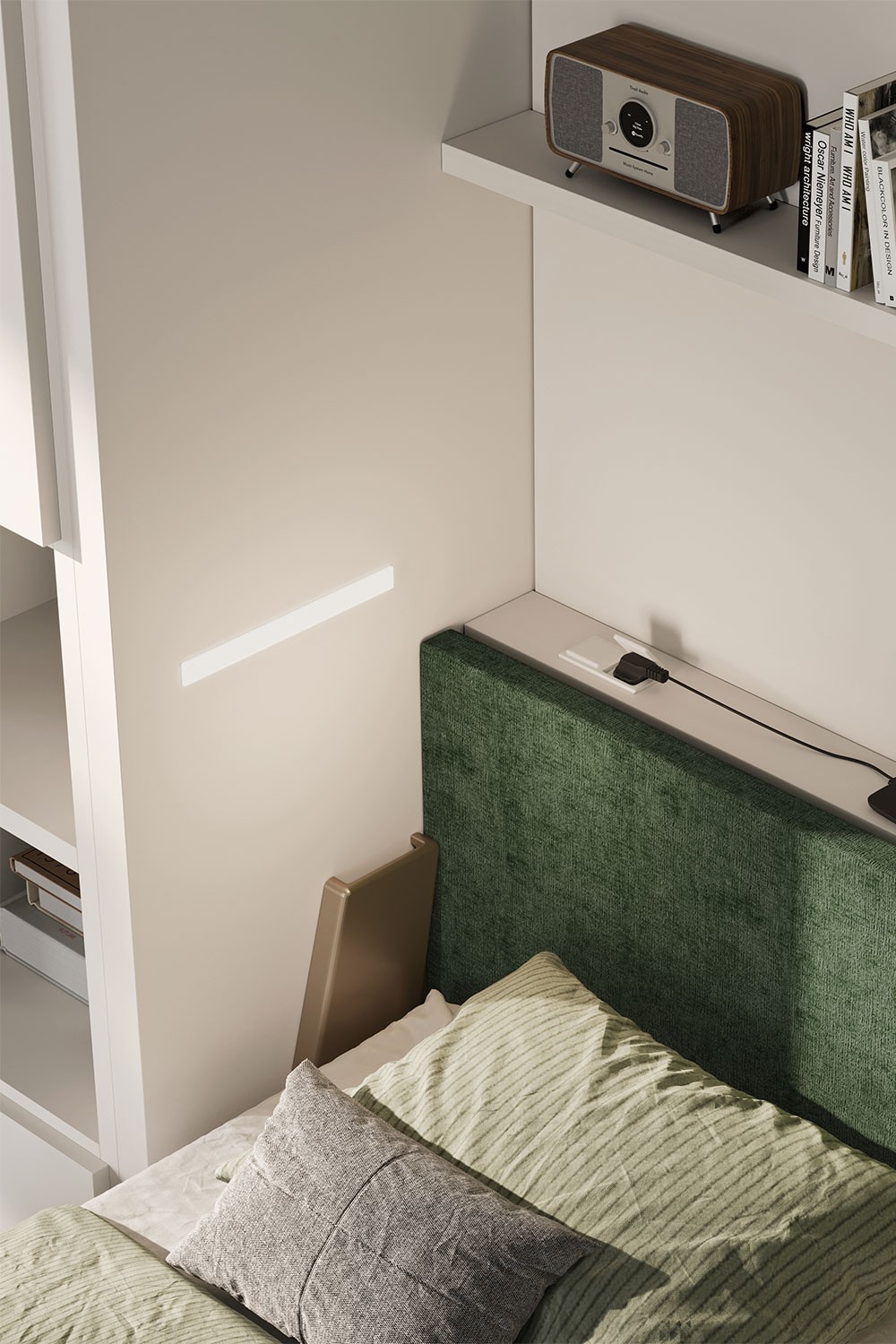

LED lighting: recessed, w.28 cm, supplied with switch and 5W / 12V power supply, placed on the right side panel. No. 2 elements for 160 cm bed bases.
Sockets and flush switch: no. 2 10-16A / 250V power sockets, 16A / 220V switch, only available for d.45,6 and 58,4 cm wall beds. Central position for 90, 120 and 140 cm bed bases / on the side panels for 160 cm bed bases.
Upholstered headboard: h.42 cm cushion for d.32,8 cm wall beds back panels, cat. A or B fabrics, non-removable. For 90, 120, 140 and 160 cm bed bases.
Internal shelves:
– with front panel: w.99,6 / 129,6 / 149,6 / 169,9 d.12,8 h.9,8 cm, 3 cm thick, for d.45,6 and 58,4 cm wall beds
– without front panel: w.99,6 / 129,6 / 149,6 / 169,9 d.12,2 cm, 3 cm thick, for d.45,6 and 58,4 cm wall beds / d.25 cm for 58,4 cm wall beds.
Ottoman footstool: w.84 d.70 h.39 cm, cat. A or B fabrics, removable cover.
Bed footstool: w.90 d.95 h.45 cm, cat. A or B fabrics. Sleep surface 190×90 cm h.22,5.
Sofa bench: freestanding, it requires removing the seat cushions before pulling down the mattress. Available with soft foam seating cushion (w.129,6 / 149,6 / 169,6 d.60,8 h.42 cm, seat height 22 cm) or firm foam seating cushions (w.129,6 / 149,6 / 169,6 d.60,8 h.50 cm, seat height 30 cm), to be completed with a pair of back cushions (w.129,6 / 149,6 / 169,6 h.50 cm). Removable fabric or faux-leather cover.
Motorised system or with remote control (except for 90 cm bed base).

Assembly
The murphy bed is disassembled and comes with assembly instructions. Wall fixation with supplied brackets is required. Anchoring on plasterboard walls doesn’t guarantee tightness.

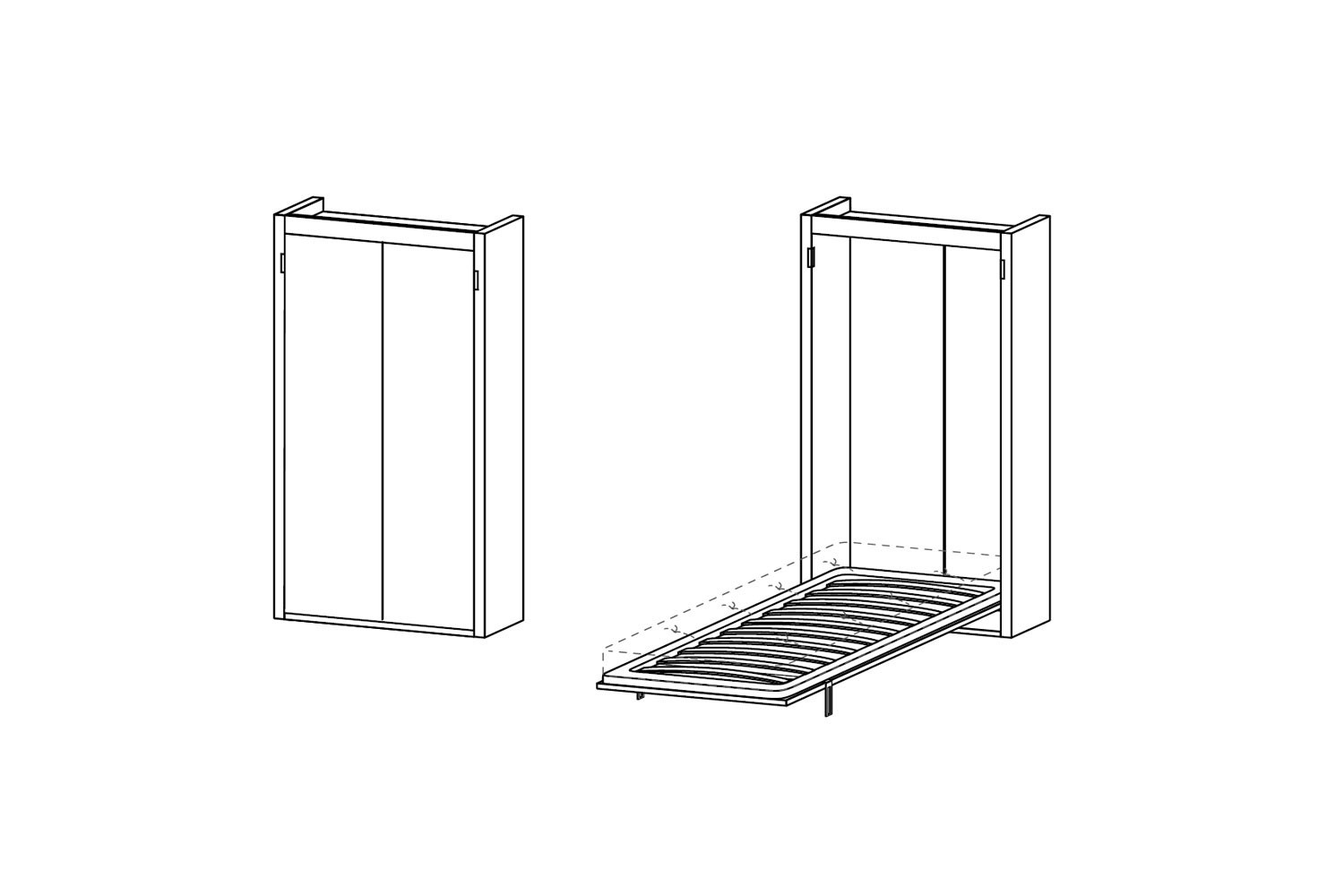

Wall bed SHIN – Shin is a murphy wall bed with vertical pull down mechanism. When closed it looks like a sleek wardrobe, but in a single movement it transforms into a comfortable single, large single, French double or king size bed. Its lift system allows the bed to be lowered in absolute safety and to stop it in any position thanks to a patented mechanism. For the bed cabinet to be able to fit in any space, its structure is available in three depths (32,8 – 45,6 – 58,4) cm.

A wide range of accessories makes this murphy wall bed a great space-saving solution suitable for small apartments, teenagers’ bedrooms or guest rooms. An ottoman perfectly fits in front and below the bed, while LED lighting, plugs and shelves make the bed fully equipped for a day-to-day use.

By choosing the cm 45,6 or 58,4 depths the bed will be equipped with an upholstered headboard cushion.
