Clever – Wall Bed Ima

Wall bed IMA by Italian brand Clever.

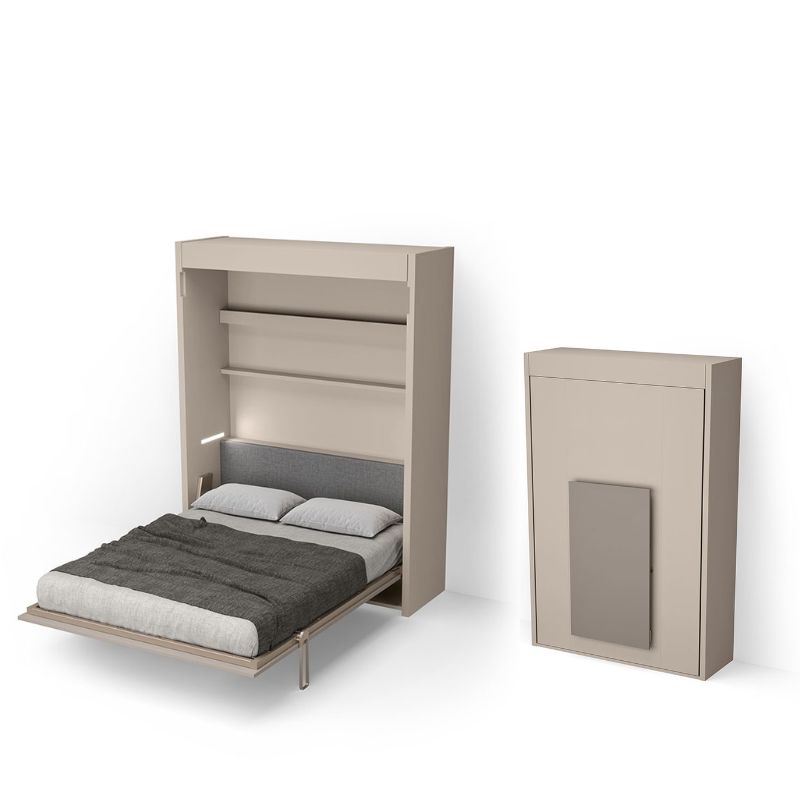

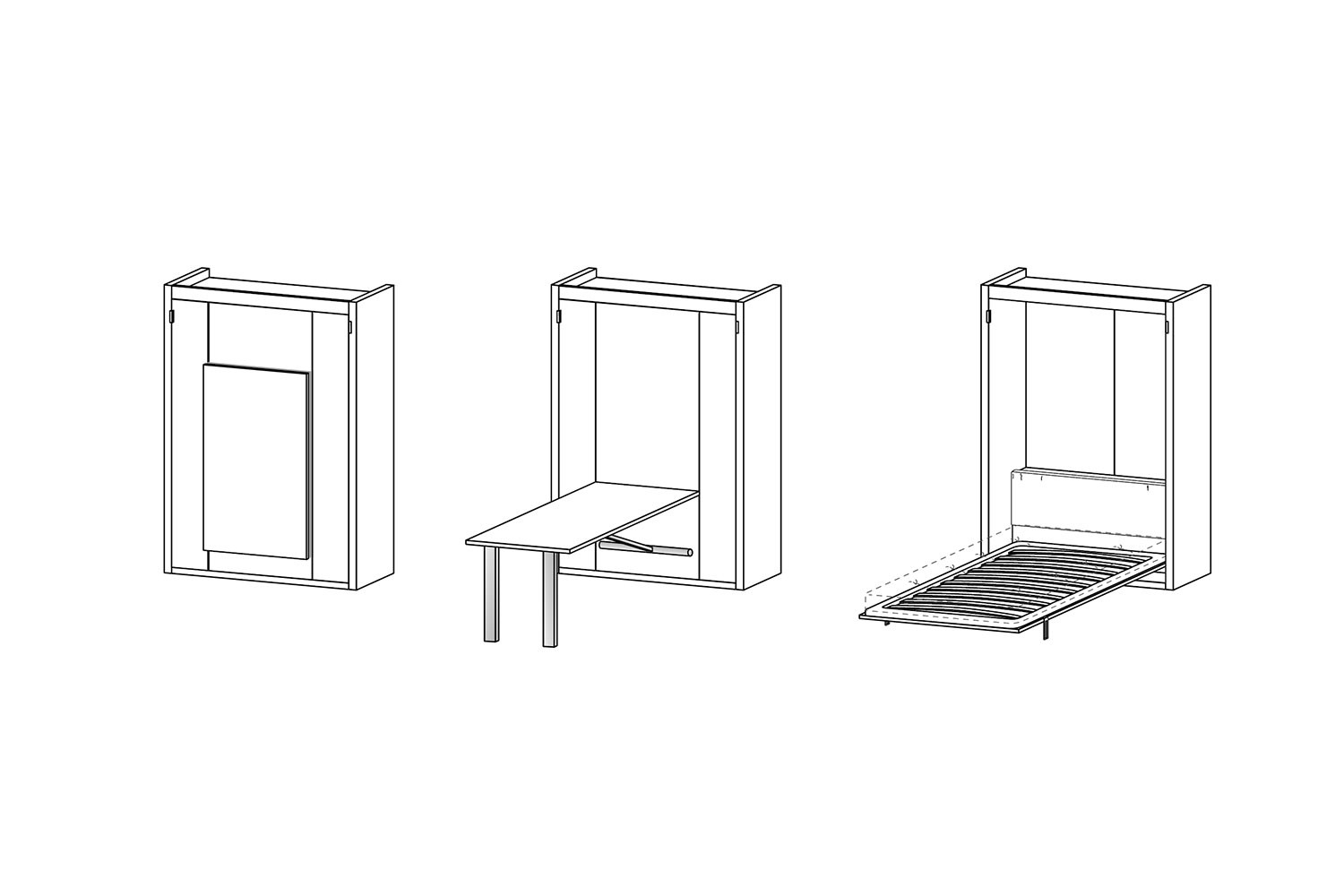

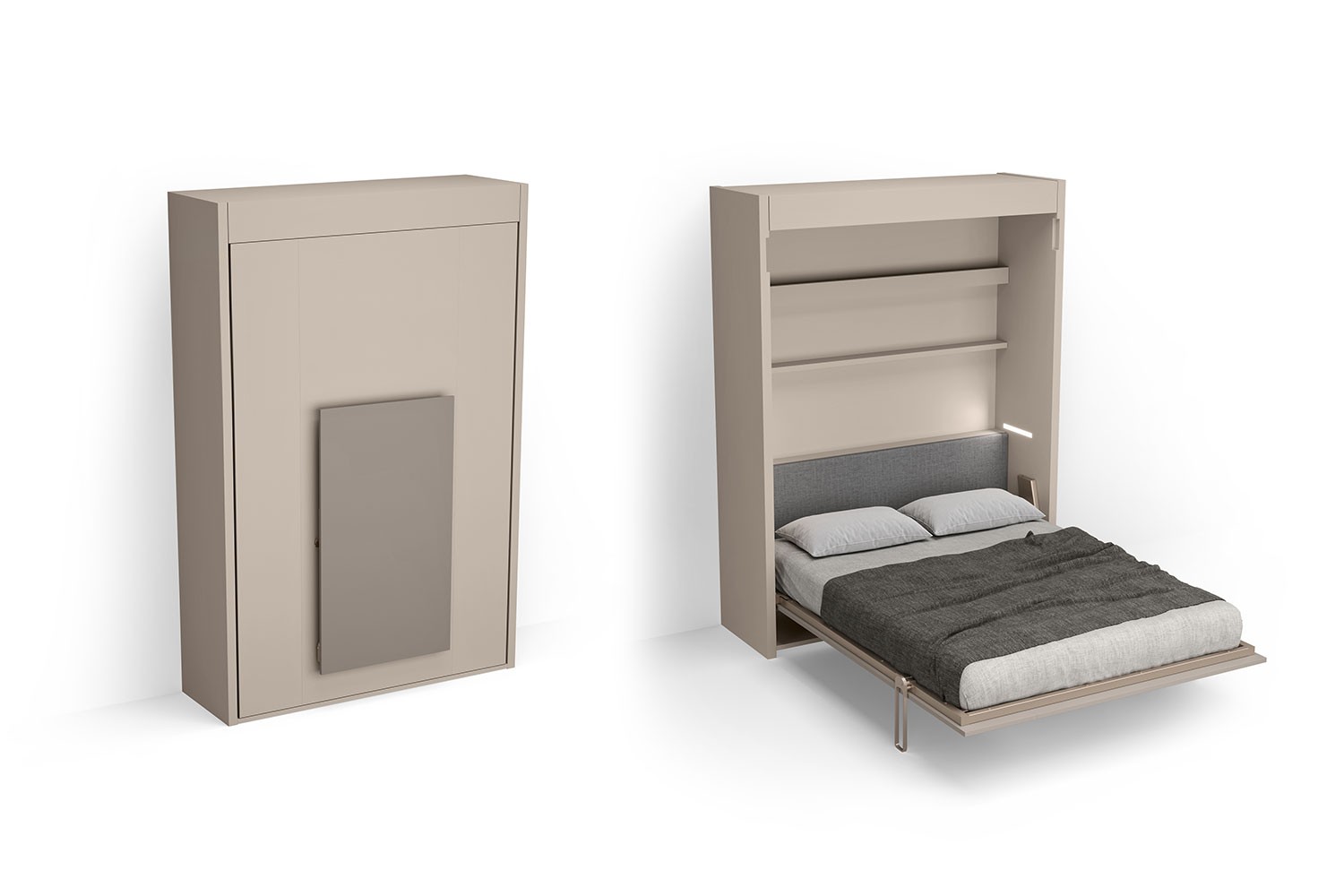

Ima is a murphy bed-table combo featuring a pull down double bed and a drop down table. For studio apartments and holiday homes.

MODEL 1:

• 90 x 200 x 32,8 cm
• Melamine base, Melamine top, 3 cm

MODEL 2:

• 120 x 200 x 45,6 cm
• Cat.A fabric
• Melamine base, Lacquered top, 3 cm

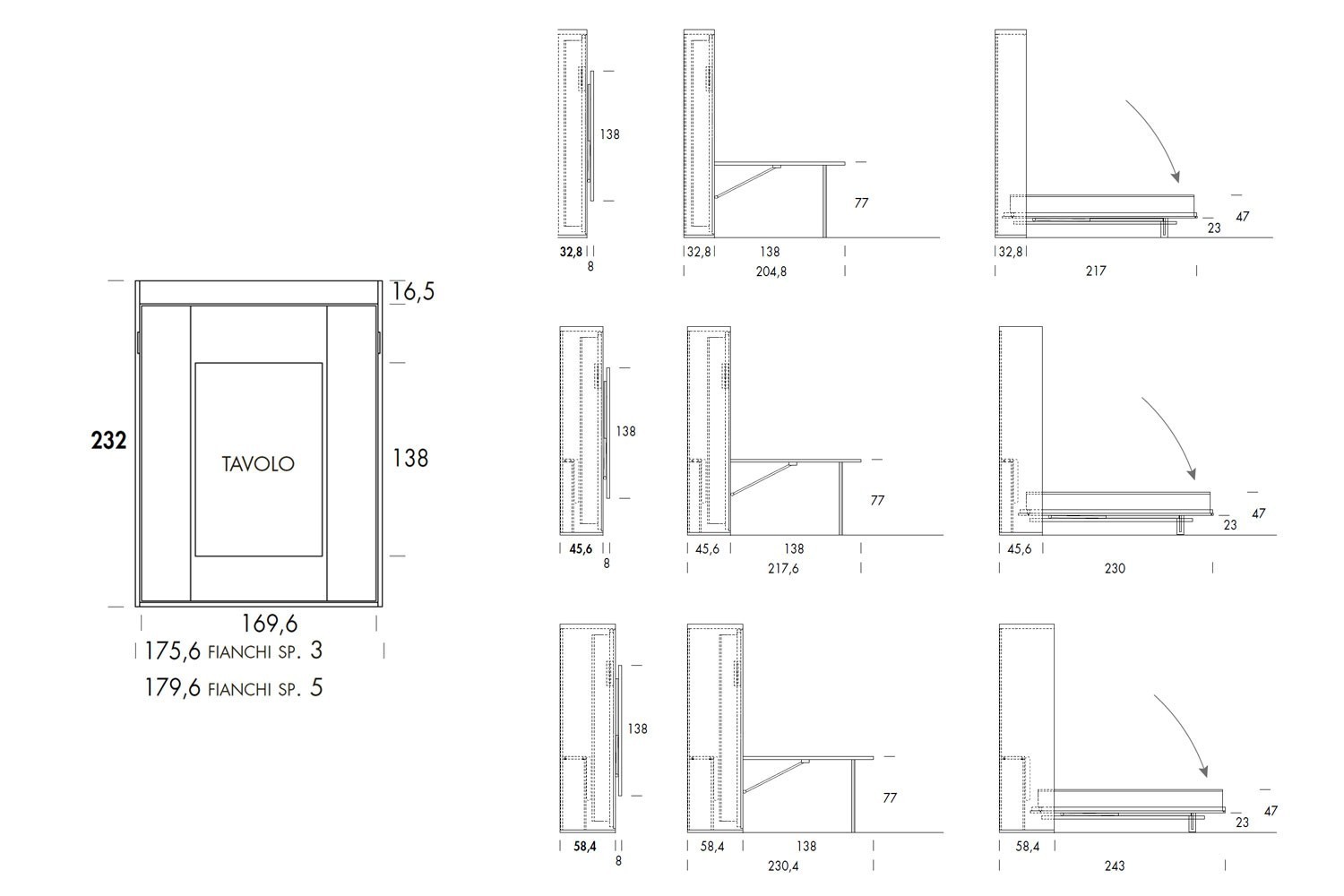

Models and Dimensions
Ima is available for mattresses 160×200 cm. Sizes:
– double bed: w.175,6 / 179,6 d.32,8 / 45,6 / 58,4 h.232 cm
Depth with open bed: 217 / 230 / 243 cm

Table dimensions: 138×80 cm

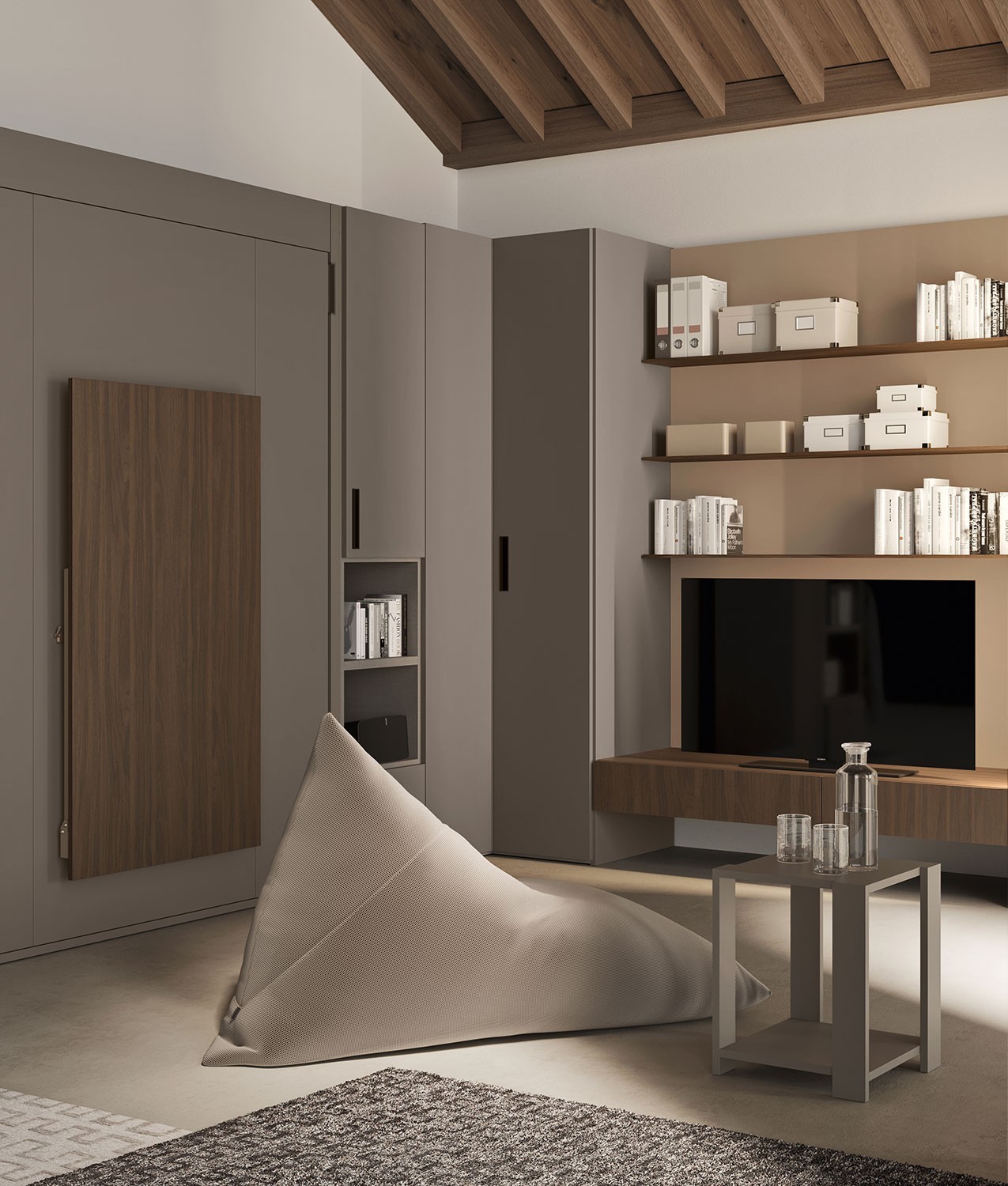

Depth with fold table: 8 cm
Depth with open table: 204,8 / 217,6 / 230,4 cm

PLEASE NOTE

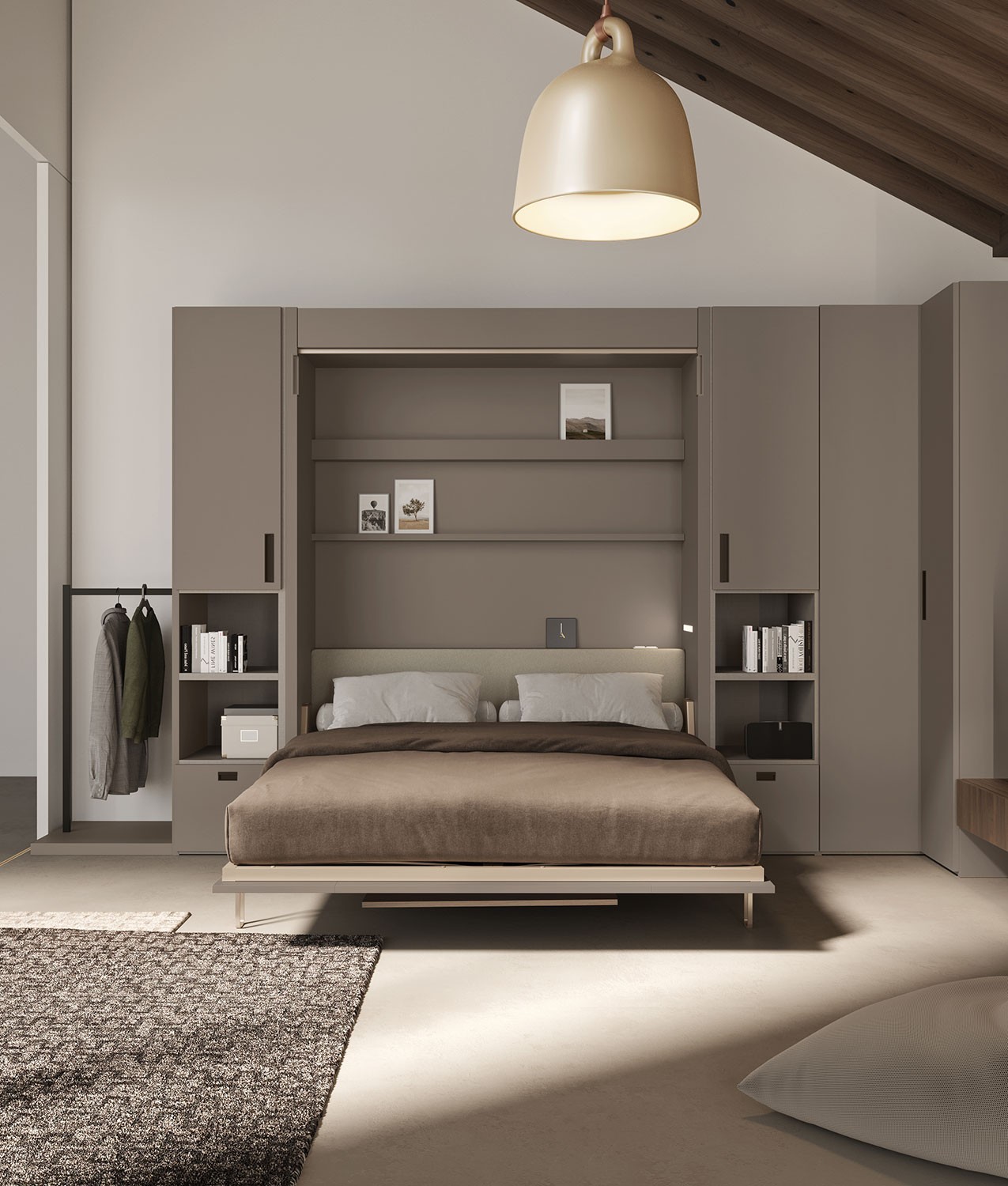

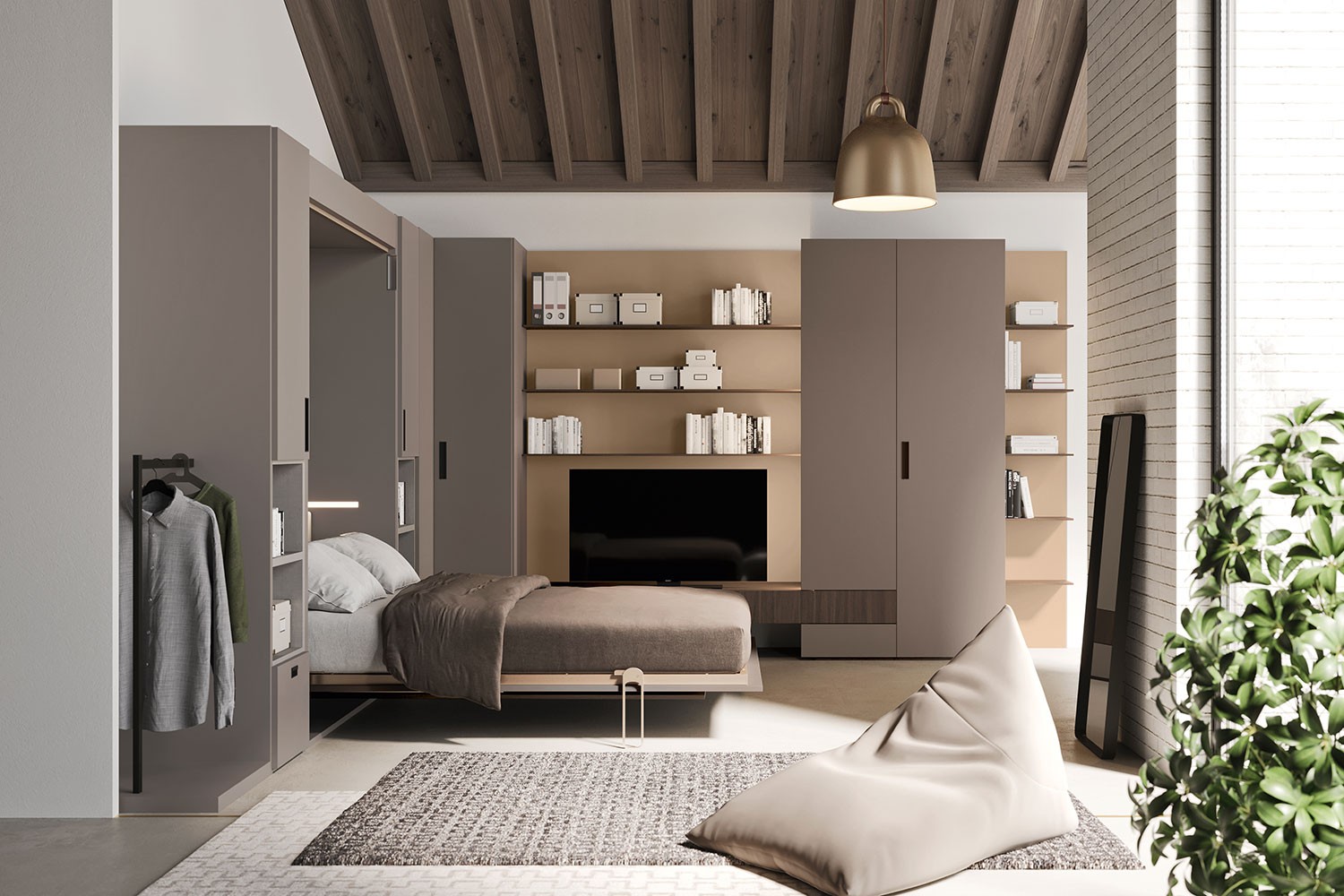

Set images are examples of possible furniture solutions. The dimensions refer to wall beds with full-height frame partitions and h.16,5 cm front top panel.

Structure
Side panel: with frame partitions, full-height, 3 or 5 cm thick.
Top panel: 5 cm thick.

Bed base and Mattresses
Bed base: safety system that prevents the murphy bed from accidentally opening, Inox Blonde finish. Max. bed load: 200 kg.
Mattress: 160×200 h.18 cm (max. thickness) / Max. weight: 33 kg. Models selection:
– Premium: pocket sprung mattress with 11×30 cm springs (single bed) Ø 0,2 cm, Box system with 700 individual pocket springs (double bed) and 7-zoned support system. Internal felt 700 g/sq m, 2 cm D 25 polyurethane foam per side. Winter side with 1 cm memory foam WE 45 density, summer side with 1 cm Watercel 30 E density. Edge supports 25 E density. Amicor removable hypoallergenic cover.
– Elite: pocket sprung mattress with 11×30 cm springs (single bed) Ø 0,2 cm, Box system with 700 individual pocket springs (double bed) and 7-zoned support system. Internal felt 700 g/sq m. Winter side with 1 cm Watercel 30 E density. Edge supports 25 E density. Ecotton hypoallergenic and dust mite-proof padding, Amicor removable hypoallergenic cover, Cotton Plus non-removable cover with aerators.

Equipment

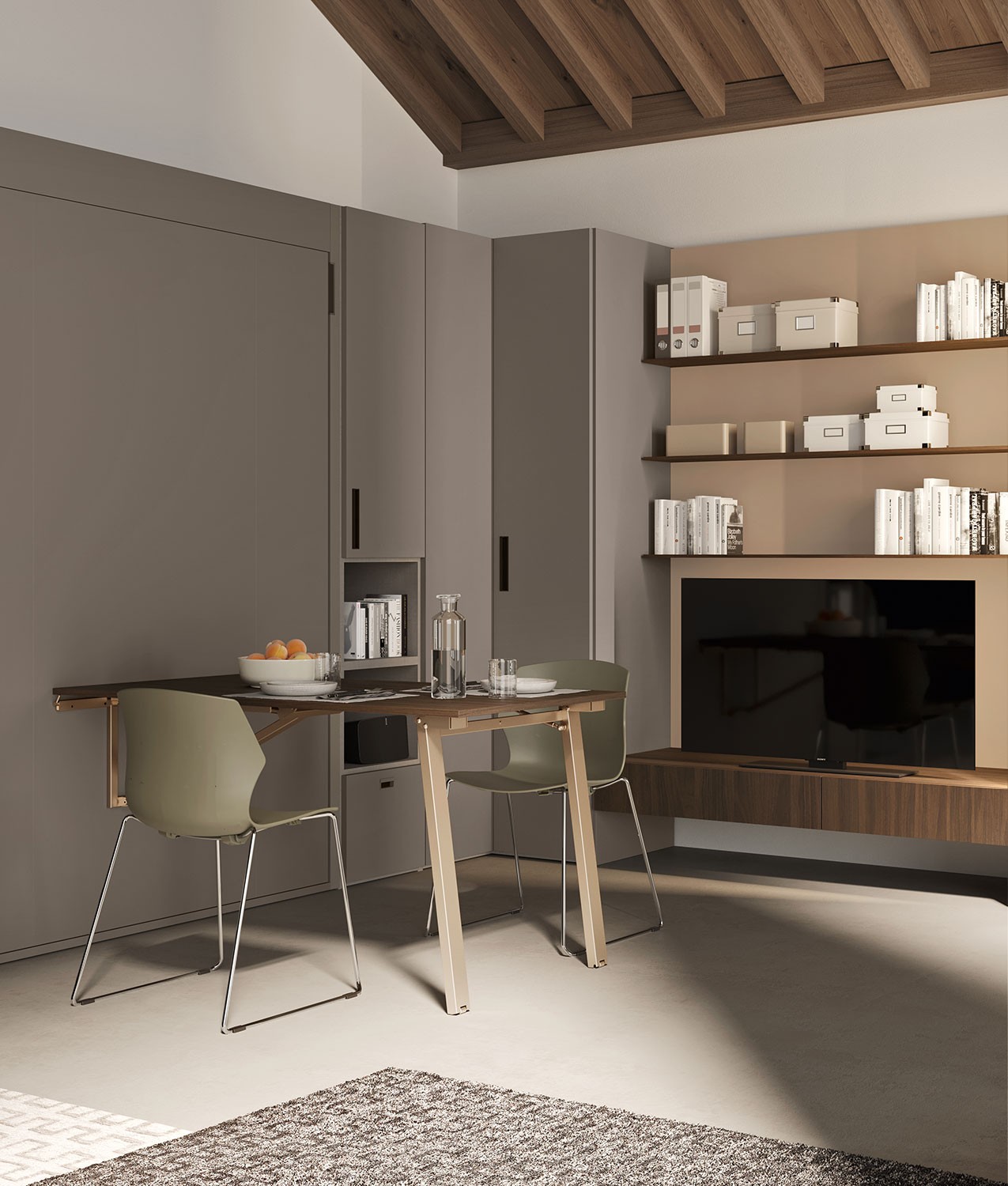

Table: 138×80 cm, 1,8 cm thick, fold-down top fixed on the front panel, legs in Inox Blonde finish. Max. load: 30 kg.
Headboard: for d.32,8 cm bed, upholstered cushion fixed on the back panel, cat. A or B fabrics, non-removable cover.

Optionals

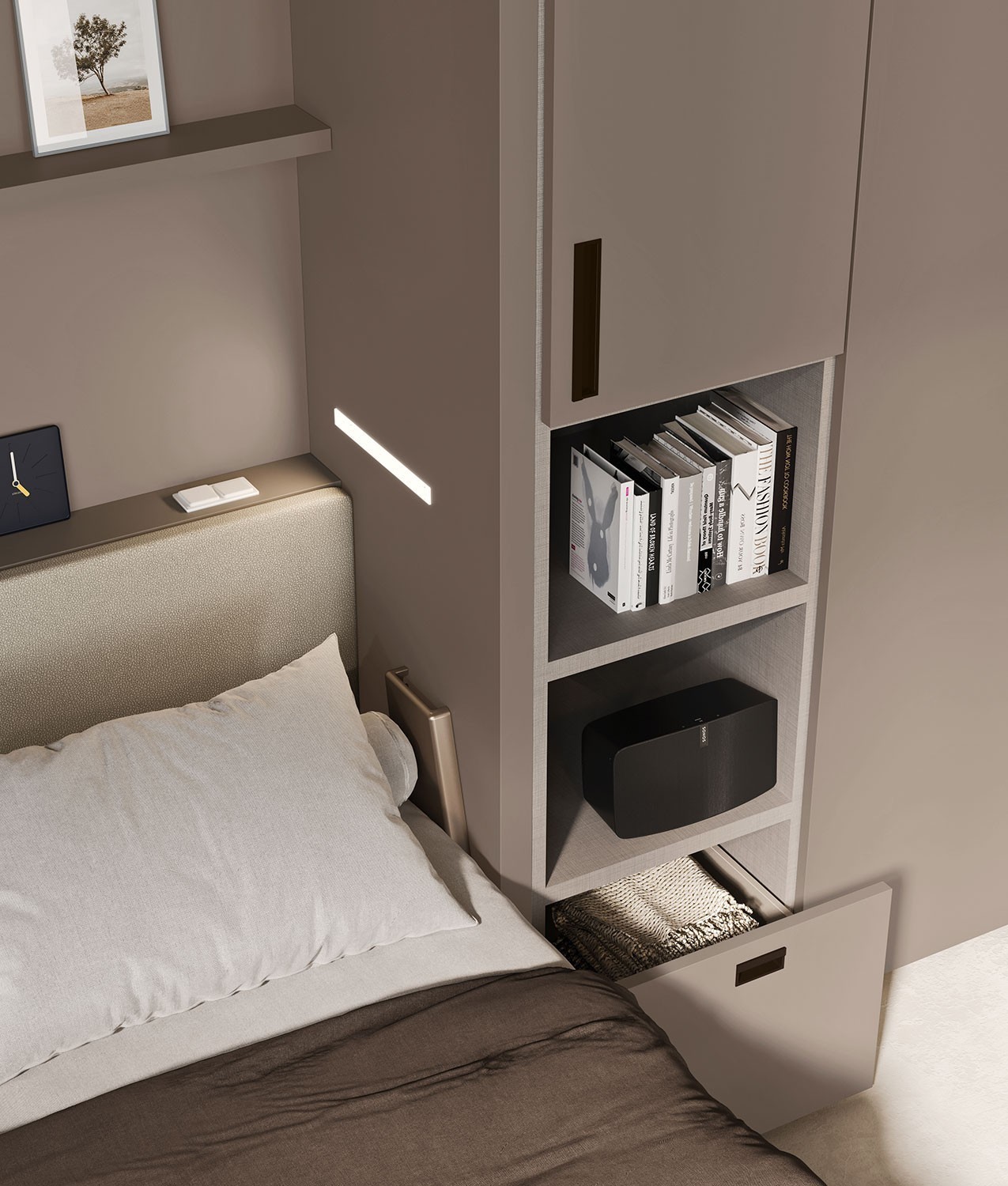

LED lighting: recessed, w.28 cm, supplied with switch and 5W / 12V power supply, placed on the right side panel. No. 2 elements for 160 cm wall beds.
Sockets and flush switch: no. 2 10-16A / 250V power sockets, 16A / 220V switch, only available for d.45,6 and 58,4 cm wall beds, placed on the side panels.
Upholstered headboard: h.42 cm cushion for d.32,8 cm wall beds back panels, cat. A or B fabrics, non-removable.
Internal shelves:
– with front panel: w.169,9 d.12,8 h.9,8 cm, 3 cm thick, for d.45,6 and 58,4 cm wall beds
– without front panel: w.169,9 d.12,2 cm, 3 cm thick, for d.45,6 and 58,4 cm wall beds / d.25 cm for d.58,4 cm wall beds

Assembly
The murphy bed is disassembled and comes with assembly instructions. Wall fixation with supplied brackets is required. Anchoring on plasterboard walls doesn’t guarantee tightness.

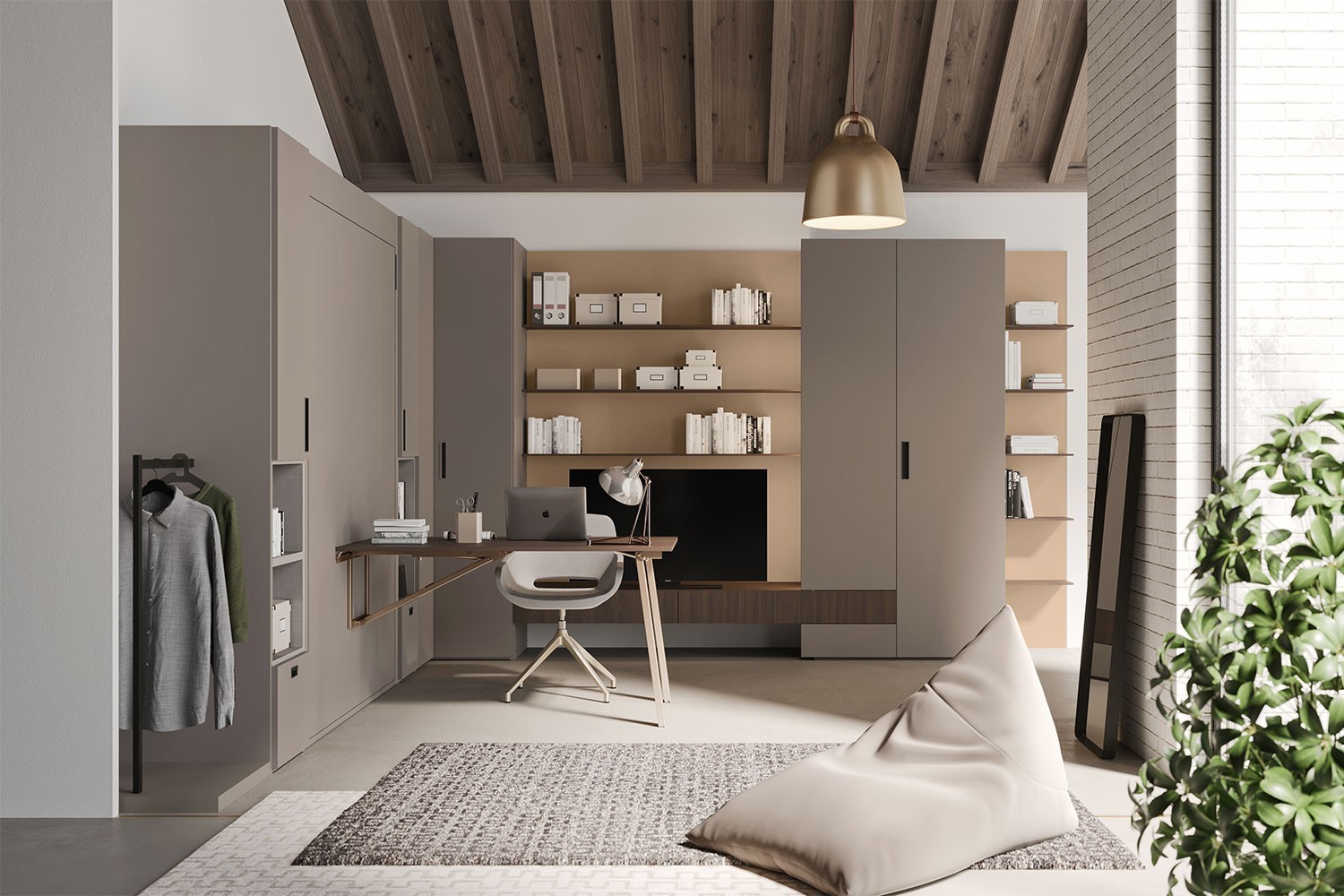

Wall bed IMA – Ima is a murphy bed – table combo, a space-saving solution suitable for small teenage bedrooms, open-plan living rooms, guest rooms, holiday homes or studio apartment. The bed cabinet includes a pull down double bed and a drop down table to be used as a PC working station or a desk. The bed base is integrated in a melamine or lacquered cabinet that can also be fitted with accessories such as shelves, LED lighting, plugs and an upholstered headboard. A wide range of finishes and colours allows you to create countless combinations so as to match up with other Clever pieces of furniture.
